SPH Engineering's GeoHammer is a simple to use tool to quickly assess and process GPR (ground penetrating radar) and CSV data from various sensors (magnetometers, metal detectors, gamma-ray spectrometers, etc.).
Particularly useful as a data processing tool in the field, the interface is optimized for maximum simplicity and ease of use.

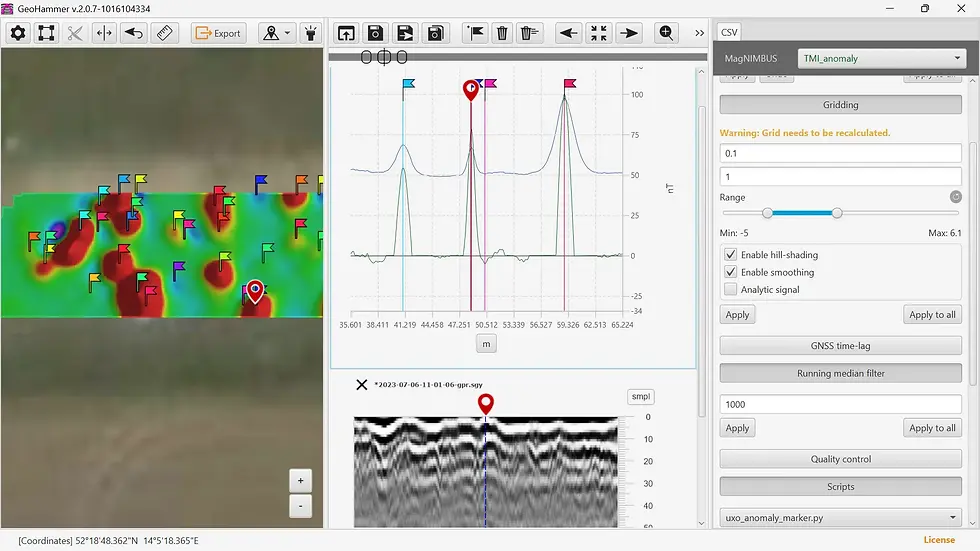

GeoHammer Pro data processing software
SKU: IS-GEOHAMMER-PERP
$2,964.00Price
- Windows and Mac OS support
- import of GPR data in SEG-Y and GSSI DZT formats
- import of Cerulean Sonar SVLOG files recorded for Cerulean Surveyor 240-16 MBES and Cerulean OmniScan 450
- display data tracks on the map
- data geotagging using POS files or precise flight tracks as source
- split data to separate lines
- most popular processing options covering majority of applications for scenarios like utilities and other man-made objects detection:
- background removal and contrast (gain) adjustment for GPR data
- low-pass filtering for CSV data
- GNSS time-lag compensation (CSV)
- data quality check for coverage and altitude range (CSV)
- running median filtering to highlight anomalies in the data
- setting marks in the data
- generate amplitude maps for GPR data
- data gridding for CSV data
- customizable templates for CSV data import, out of the box, GeoHammer has import templates for the following data formats:
- SPH Engineering's SkyHub data log (position.csv file)
- SPH Engineering MagNIMBUS magnetometer
- SENSYS MagDrone R4, R3, R1 data files (ASC format)
- SENSYS MagDrone R1 raw data files
- Medusa MS series gamma ray spectrometers CSV files
- Geometrics MagArrow
- GEM Systems GSMP-25/35
- Marine Magnetics SeaSpy
- SMAGALL HSF-113
- Geodevice AeroSmartMag
- POS (position solution) files
