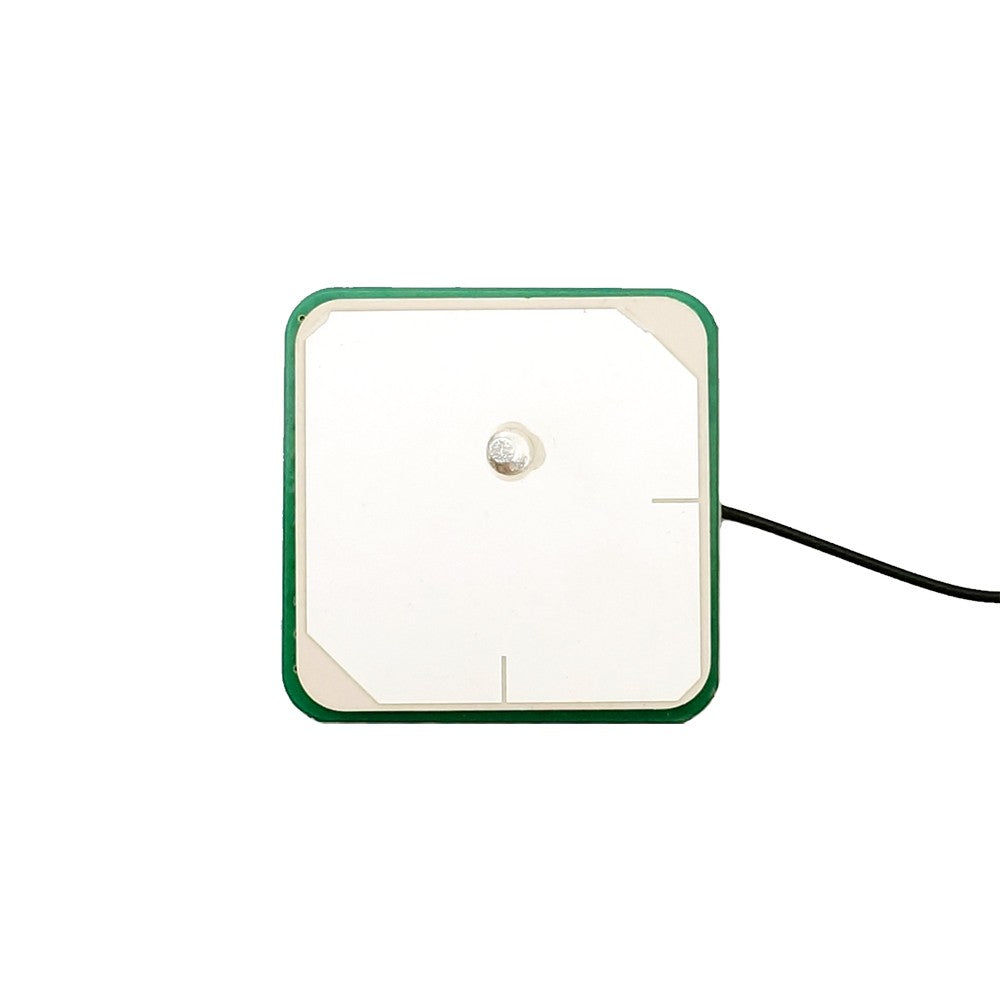

IPEX (U.FL) 35mm Two Stage 38dB L1/B1I/B1c/E1/G1 GNSS Active Patch Antenna Module.
The 35mm active patch antenna module has been designed specifically for embedded (inside device) integration with GPS/Glonass receiver modules. The antenna combines a 35x35mm advanced low profile ceramic patch antenna with a two stage LNA and a front-end SAW filter with ultra thin coaxial cable.
Signal Received:
- GPS L1
- GLONASS G1
- GALILEO E1
- BDS B1I/B1C
- SBAS L1
- QZSS L1
LNA Specifications:
- LNA Gain - 38dB
- Noise Figure - <2dB
- Output Impendance - 50 Ohm
- Supply Voltage - 2.8-5V
- Supply current - <20mA
- Wide Input Voltage 2.8V to 5.5V
- Polarizacion - RHCP
- Axis Ratio - <3dB
- Horizontal angle - 360deg
- Low Power Consumption
- RoHS & Reach compliant
- Gain - 1.5dBi
- VSWR - <1.5
Mechanical Data:
- Dimensions: 38x38x7mm (Ground Plane)
- Weight: 16 gr.
- Connector: IPEX (U.FL)
- Cable length: 50mm Ø1.13 cable
- Mounting: double sided 3M tape
L1 IPEX (U.FL) 35mm Two Stage 38dB Multi GNSS Band Active Patch Antenna Module
SKU: DNT-EL0181
$25.56Price
- Signal Received:
- GPS L1
- GLONASS G1
- GALILEO E1
- BDS B1I/B1C
- SBAS L1
- QZSS L1
- LNA Specifications:
- LNA Gain
- 38dB
- Noise Figure
- <2dB
- Output Impendance
- 50 Ohm
- Supply Voltage
- 2.8-5V
- Supply current
- <20mA
- Wide Input Voltage 2.8V to 5.5V
- Polarizacion
- RHCP
- Axis Ratio
- <3dB
- Horizontal angle
- 360deg
- Low Power Consumption
- RoHS & Reach compliant
- Gain
- 1.5dBi
- VSWR
- <1.5
- Mechanical Data:
- Dimensions: 38x38x7mm (Ground Plane)
- Weight: 16 gr.
- Connector: IPEX (U.FL)
- Cable length: 50mm Ø1.13 cable
- Mounting: double sided 3M tape
